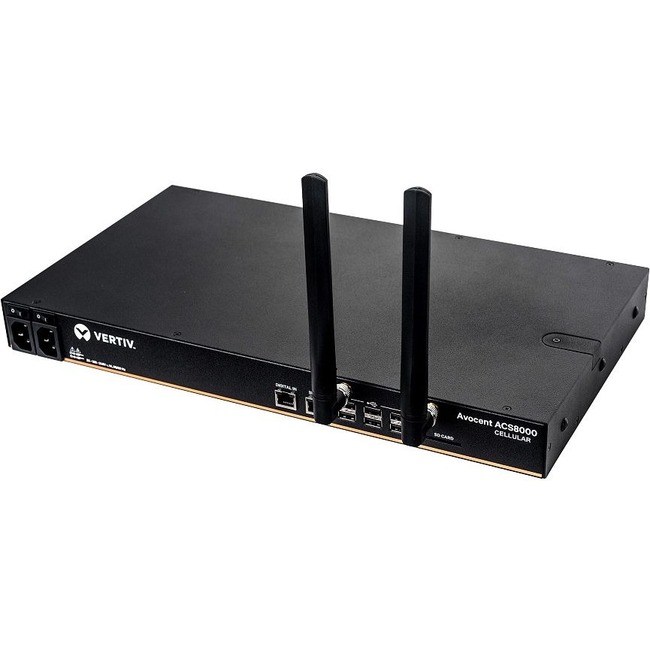

Vertiv Avocent ACS8000 Serial Console 32 port | Dual AC Power | AT&T+Verizon
| $5,025.46 Retail $6,210.00 |
- In-band and out-of-band connectivity and control for connected devices.
- Cellular connectivity when Ethernet connections are limited or cellular connectivity is needed.
- Single-IP address management acting as an IoT gateway for sensors and digital inputs and outputs.
- Single-point-of-entry security for all downstream equipment.
- Auto-discovery and native command settings for monitoring and management of Vertiv equipment.
Advanced Serial Console Server| Remote Console| Cellular Support| In-band and Out-of-band Connectivity| 8 to 48 rs232 terminal| Dual AC power| 2-Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Product Specifications
| Maximum Memory Supported | 16 GB |
| Maximum Memory Supported | 16 GB |
| Number of Serial Ports | 32 |
| Number of Serial Ports | 32 |
| Additional Information | 1 x Full Size SD Card Slot 4 Digital-In Ports (Smoke Leak Pressure And Dry Contact Sensors) Optional 48V DC Power Supply Cellular Type: 4G/LTE (2FF/mini SIM Card Slot) Cellular Frequency Bands (MHz):
|
| Additional Information | 1 x Full Size SD Card Slot 4 Digital-In Ports (Smoke Leak Pressure And Dry Contact Sensors) Optional 48V DC Power Supply Cellular Type: 4G/LTE (2FF/mini SIM Card Slot) Cellular Frequency Bands (MHz):
|
| Brand Name | AVOCENT |
| Brand Name | AVOCENT |
| Compatibility |
|
| Compatibility |
|
| Country of origin | United States |
| Country of origin | United States |
| Depth | 9.5" |
| Depth | 9.5" |
| Device type | Console Server |
| Device type | Console Server |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Height | 1.8" |
| Height | 1.8" |
| Limited Warranty | 1 Year |
| Manufacturer | Vertiv |
| Manufacturer | Vertiv |
| Manufacturer Part Number | ACS8032-NA-DAC-400 |
| Manufacturer Part Number | ACS8032-NA-DAC-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Marketing Information | The Vertiv Avocent ACS8000 Cellular advanced serial console server series delivers secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers as well as cloud and colocation facilities. Now with cellular capabilities the Vertiv Avocent ACS8000 Cellular provides flexibility to access devices when wired networks are down (failover) or not available at the device location. This serial console system serves as a secure management gateway and single point of entry keeping you connected to critical IT equipment even in the event of partial or total data center outages. With environmental monitoring IoT integration and remote networking abilities the Vertiv Avocent ACS8000 Cellular is ideal for edge locations enterprise data centers and hyperscale or colocation facilities. |
| Marketing Information | The Vertiv Avocent ACS8000 Cellular advanced serial console server series delivers secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers as well as cloud and colocation facilities. Now with cellular capabilities the Vertiv Avocent ACS8000 Cellular provides flexibility to access devices when wired networks are down (failover) or not available at the device location. This serial console system serves as a secure management gateway and single point of entry keeping you connected to critical IT equipment even in the event of partial or total data center outages. With environmental monitoring IoT integration and remote networking abilities the Vertiv Avocent ACS8000 Cellular is ideal for edge locations enterprise data centers and hyperscale or colocation facilities. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Memory Technology | DDR3L SDRAM |
| Memory Technology | DDR3L SDRAM |
| Network Standard | 10/100/1000Base-T |
| Network Standard | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 8 |
| Number of USB Ports | 8 |
| Power consumption | 28 W |
| Power consumption | 28 W |
| Processor Manufacturer | ARM |
| Processor Manufacturer | ARM |
| Product Name | ACS8000 Advanced Console Server |
| Product Name | ACS8000 Advanced Console Server |
| Product Series | ACS 8000 |
| Product Series | ACS 8000 |
| Product Type | Device Server |
| Product Type | Device Server |
| Standard Memory | 1000 MB |
| Standard Memory | 1000 MB |
| UPC Alternates | 636430090573 |
| UPC Alternates | 636430090573 |
| USB | Yes |
| USB | Yes |
| Weight (Approximate) | 7 lb |
| Weight (Approximate) | 7 lb |
| Width | 17.3" |
| Width | 17.3" |
